R1B Double-Head Solar Panel Cleaning Robot

ModelWSE-R01B

Price on request

Highlights

Dual roller brushes boost cleaning efficiency ~95% vs a single brush
Cleans 1.5-2 MW of PV plant per day, wet or dry
150-200 m HD visual remote with battery display and cruise control
Omni-directional anti-fall sensors on an all-terrain tracked chassis
Dual 24 V / 26 Ah lithium packs run 6-8 hours per charge

Request a Quote

Remote-controlled double-head crawler robot — cleans 1.5–2 MW of panels per day, wet or dry.

SKU: WSE-R01B

Category: Solar Cleaning Robots

Overview

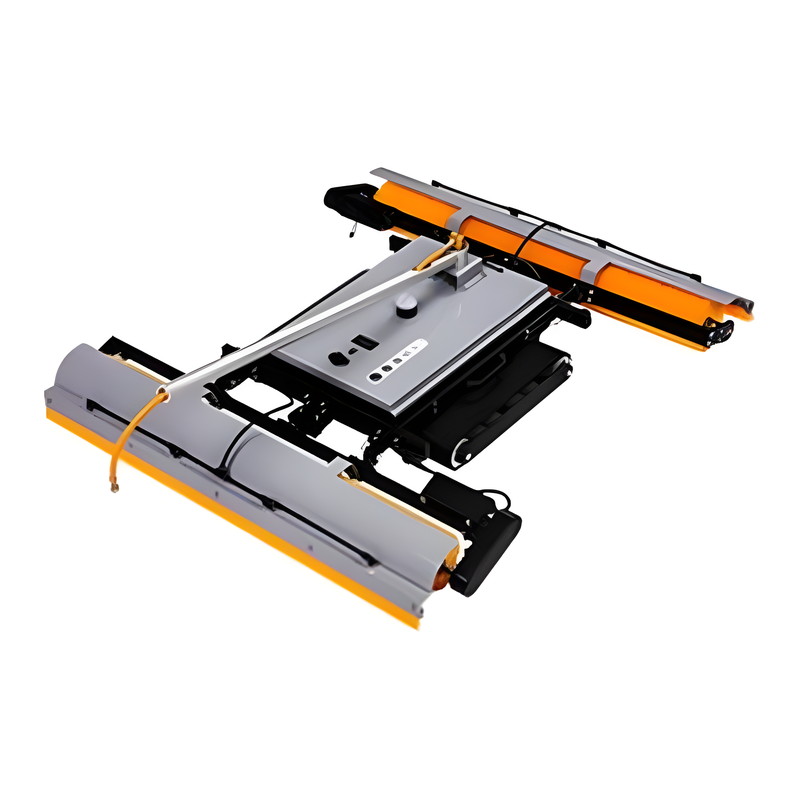

Remote-controlled, double-head crawler robot for large and hard-to-reach solar arrays.

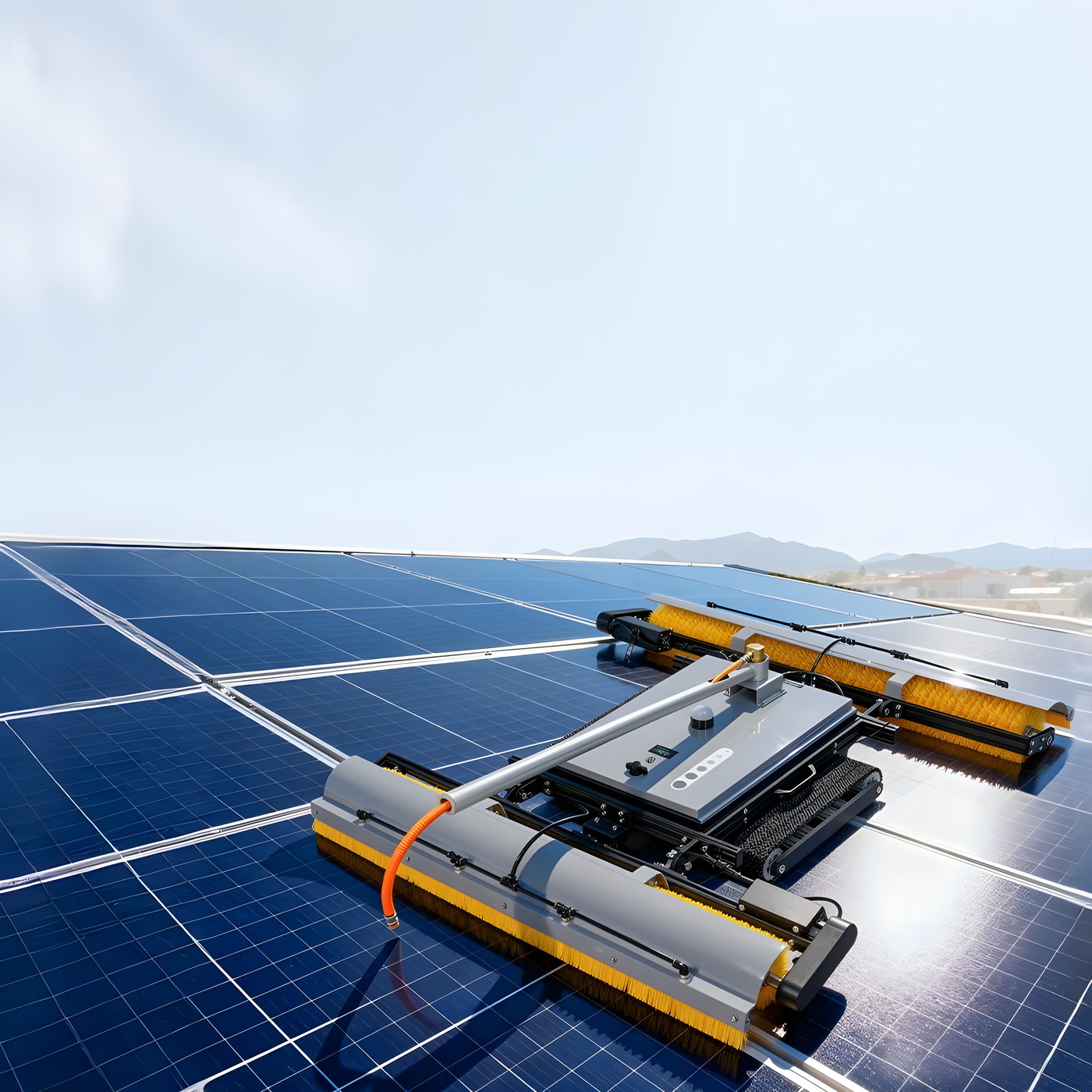

The R1B walks the array on an all-terrain tracked chassis, cleans wet or dry, and stops itself at panel edges — all from a handheld remote up to 150–200 m away. Two roller brushes work behind a fan-shaped water curtain, lifting dust, dried mud and bird droppings in a single pass at up to 1.5–2 MW of plant per day.

It is built for the sites that are awkward to service — rooftops, carports and utility-scale fields where walking the glass is slow, risky or simply not permitted. The robot steps across frame gaps of up to 20 cm without stopping, holds its line on arrays pitched up to 20°, and spreads its 48.3 kg over full-width rubber tracks instead of point-loading the modules. Two 24 V lithium packs cover a 6–8 hour shift, and both chargers ship in the box.

Why this machine

Key Benefits

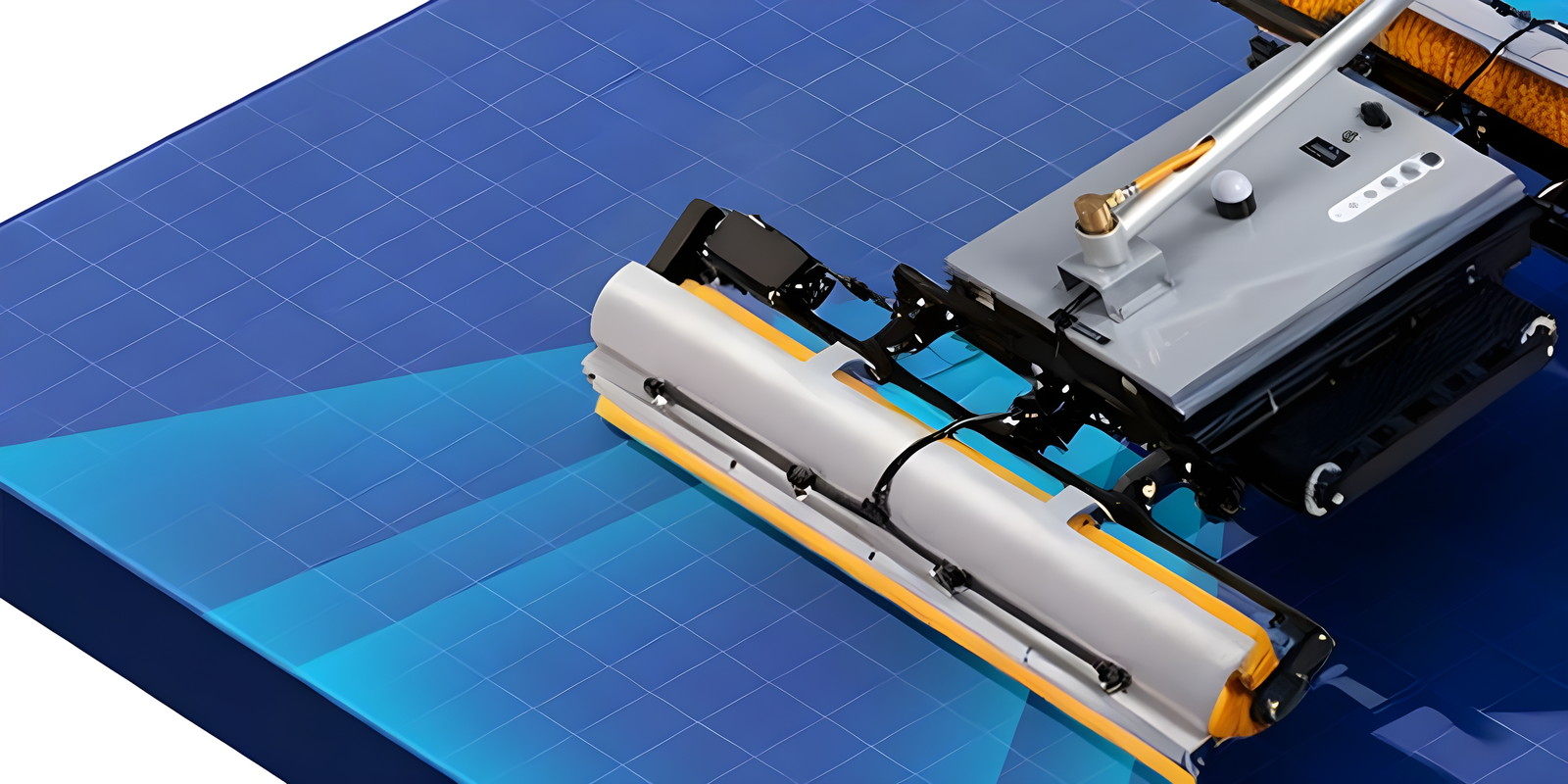

Double-head throughput

two roller brushes with multi-point water spray form a uniform fan-shaped water curtain, boosting cleaning efficiency by ~95% versus a single brush and clearing 1.5–2 MW of PV plant per day. Choose a 1100 mm or 1400 mm cleaning width to match your module layout, and drive either brush independently when you only need one side working.

~95% vs single brush1.5–2 MW / day1100 / 1400 mm

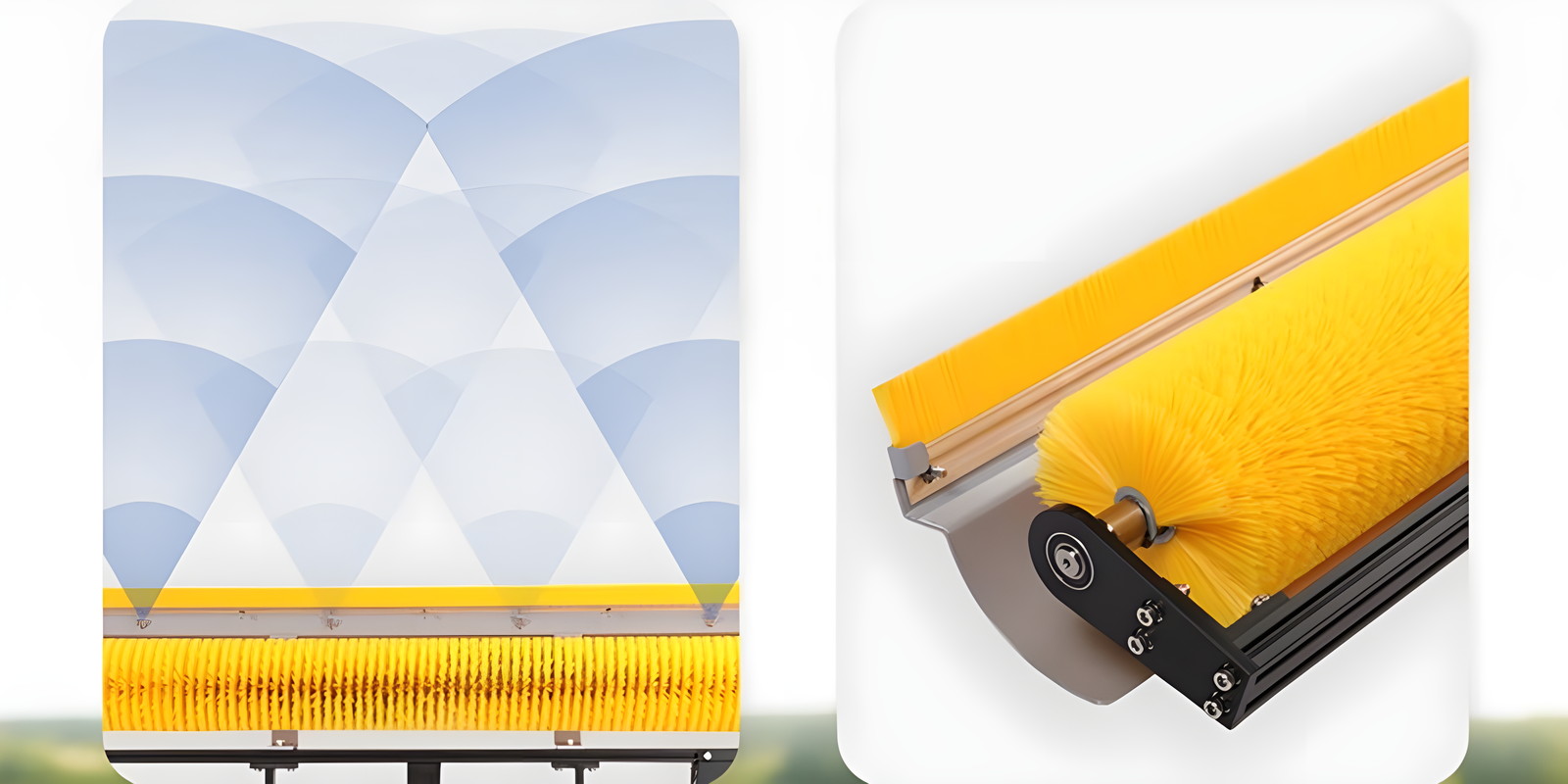

Wet & dry cleaning

in wet mode, multi-point nozzles above the rollers lay down a fan-shaped water curtain while the PBT brushes lift dust, dried mud and bird droppings, drawing no more than 1.84 L/min. Switch to dry mode and the same rollers sweep loose dust and sand without a drop of water — which is what most desert and water-scarce sites actually need. No detergent either: the bristles are specified to clean the glass, not abrade it.

Wet + dryMax 1.84 L/minPBT bristles

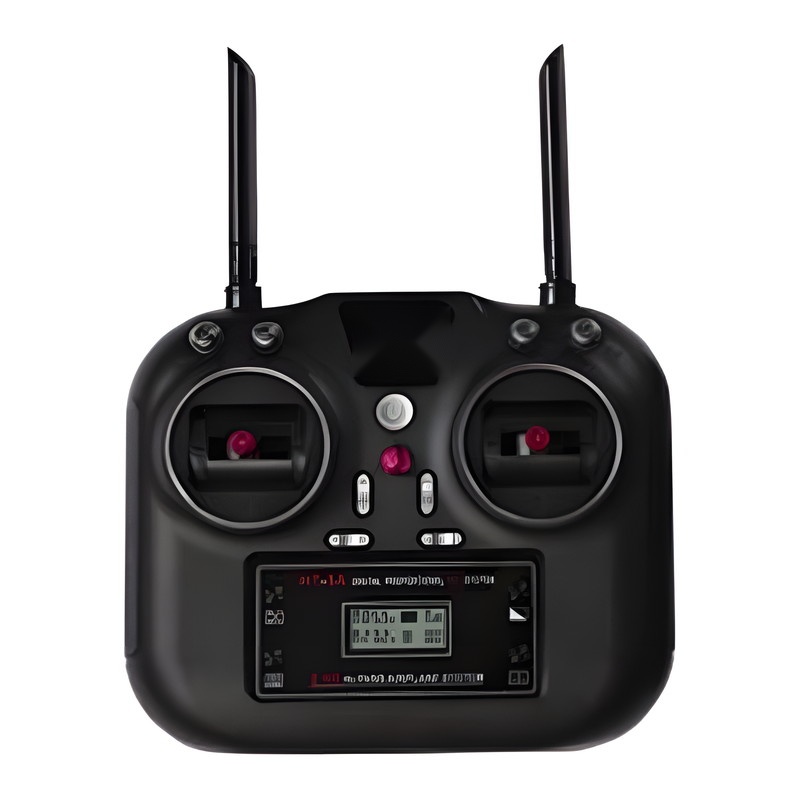

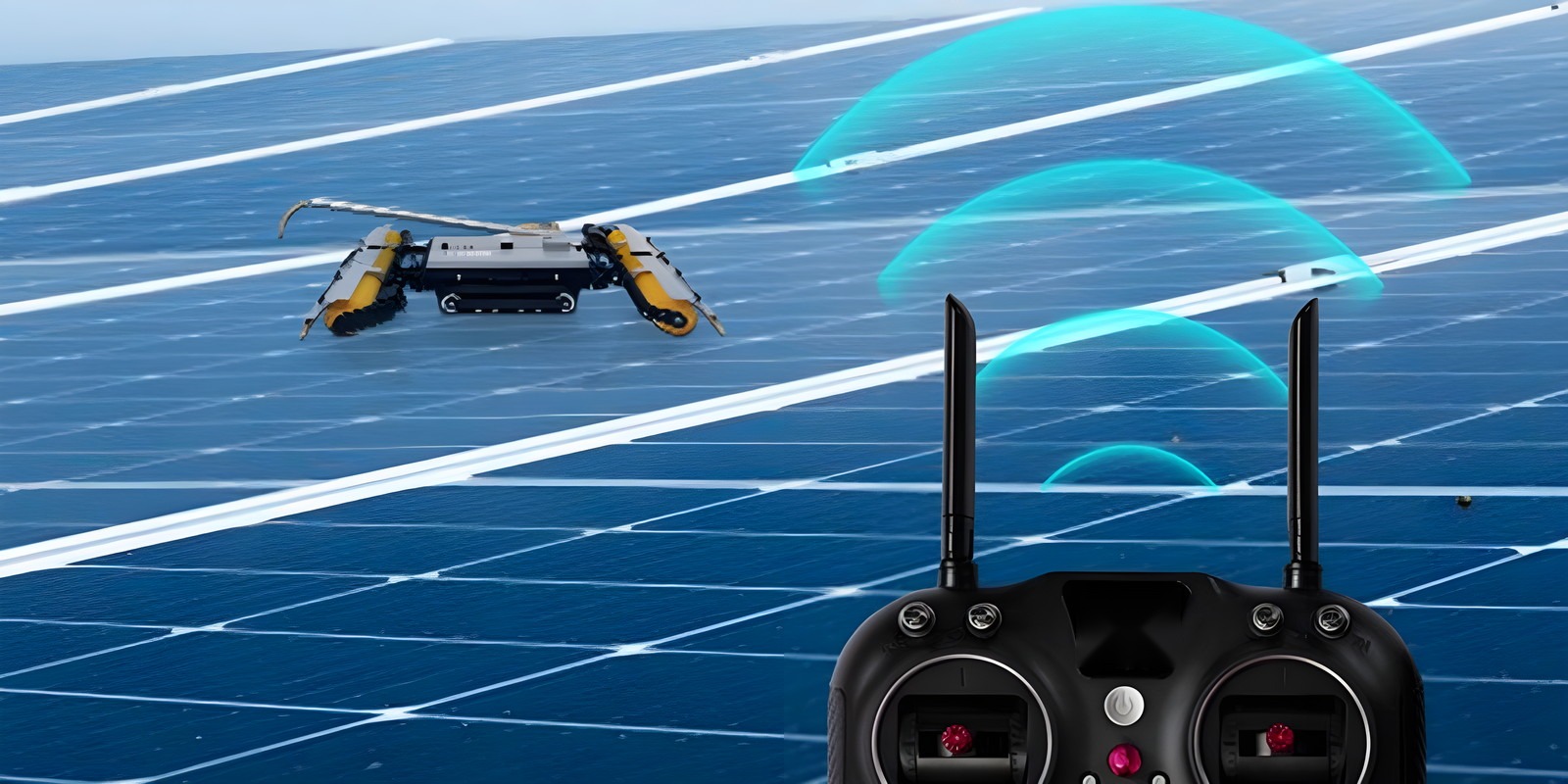

HD visual remote (150–200 m)

the operator stays on the ground or at the roof edge instead of walking the array, which is where most cleaning injuries happen. The handset shows signal strength and live battery state, warns on low voltage, and offers cruise control, independent single/double brush control and stepless speed adjustment.

150–200 m rangeLive battery read-outCruise control

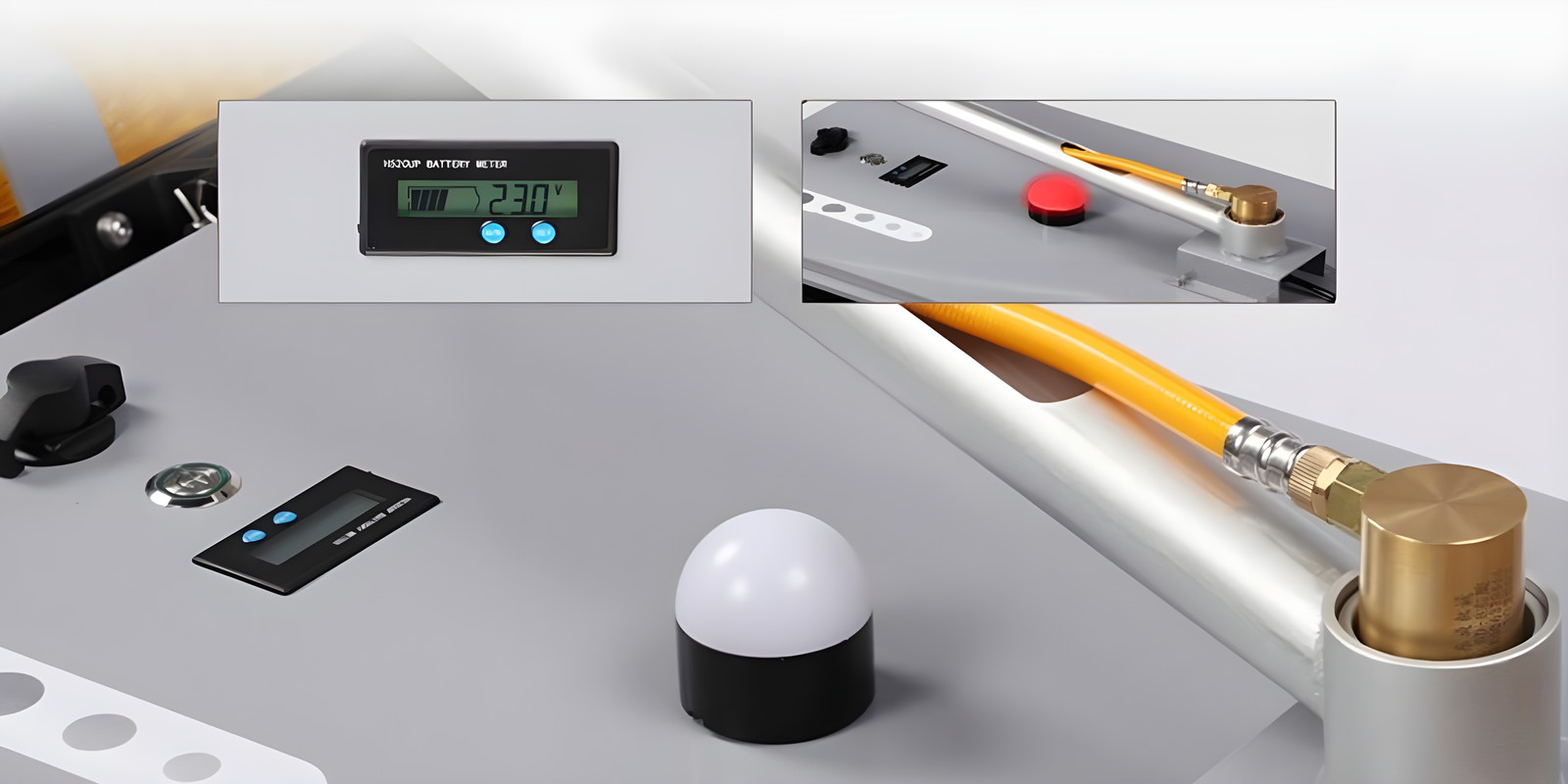

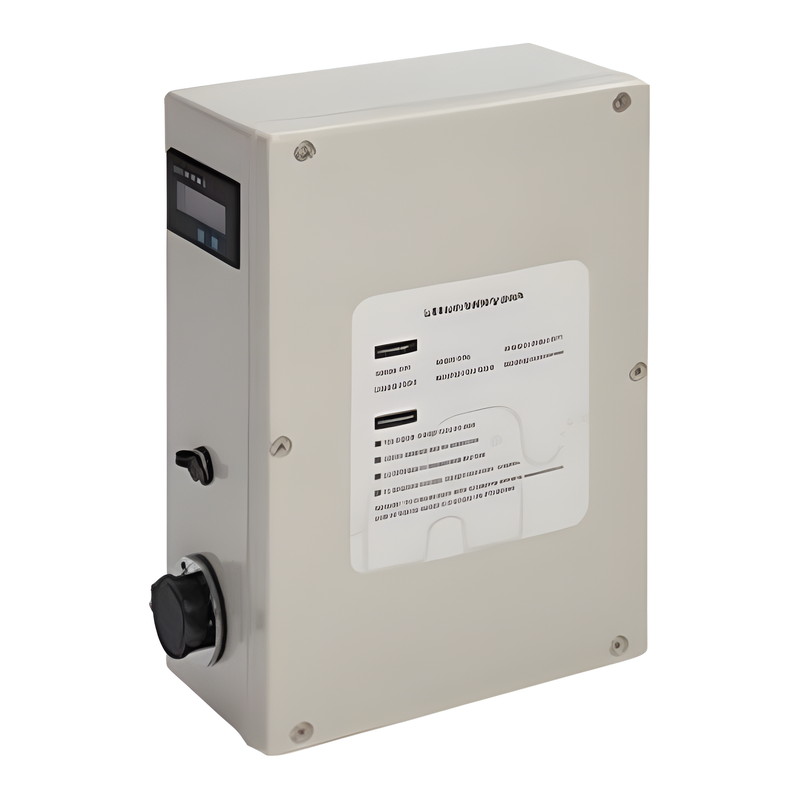

All-day battery

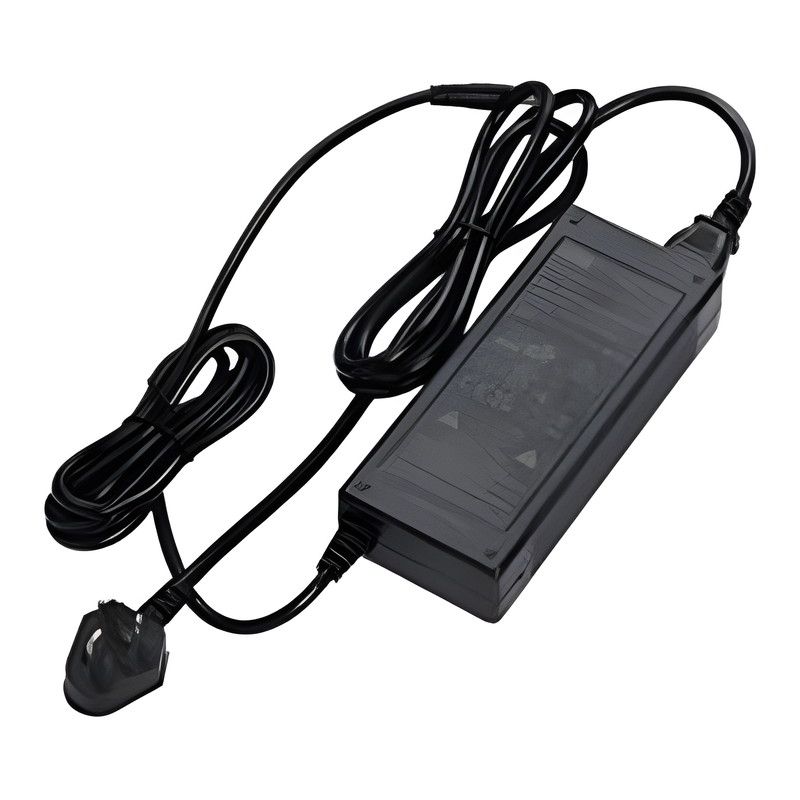

two 24 V / 26 Ah lithium packs give 6–8 hours of continuous cleaning, with the charge level readable straight off the housing rather than guessed at. Below 20% the robot warns with a flashing light and buzzer so it never strands itself mid-array, and two chargers ship in the box so one pack refills while the other works.

24 V / 26 Ah ×26–8 h runtime2 chargers in box

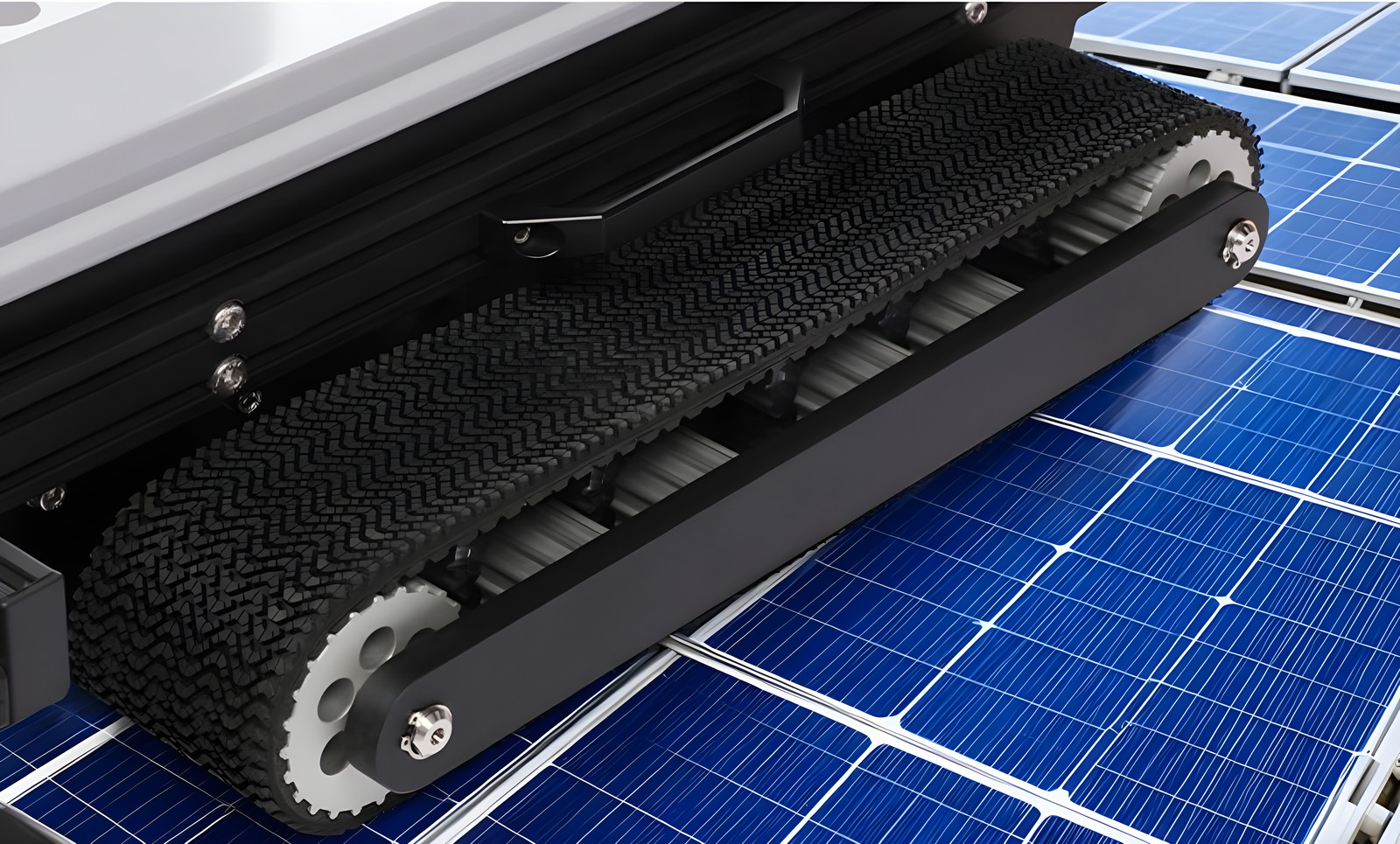

All-terrain tracked chassis

full-width rubber tracks spread the robot’s 48.3 kg across the glass instead of concentrating it under wheels, so it grips wet and tilted panels without slipping or point-loading them. It steps across frame gaps of up to 20 cm, holds its line on arrays pitched up to 20°, and moves between cleaning passes at 20 m/min.

48.3 kg20 cm gap crossing≤ 20° tilt20 m/min

Safety first

Built not to fall

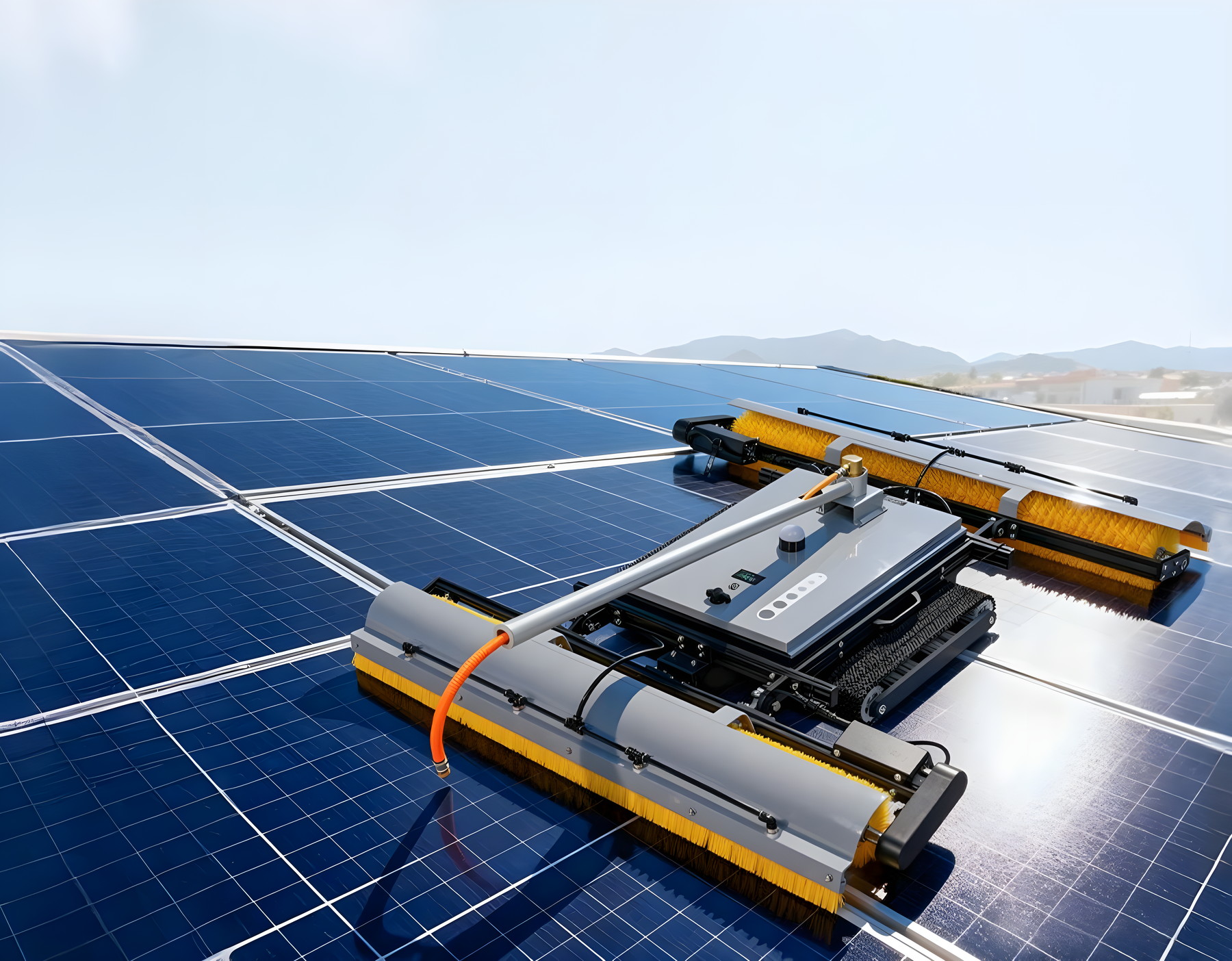

Anti-fall protection

omni-directional edge sensors stop the robot at panel edges and turn on a red warning light; you simply drive it back the other way with the remote.

Omni-directional edge sensorsAuto-stop at panel edgesRed warning light

Hover the photo — the rest of what this robot handles

360° all-round work
Up to 20° working angle
All-aluminium alloy body
Wide range of arrays

Technical data

Specifications

Item	Spec
Model	R1B (double head)
Cleaning width	1100 mm / 1400 mm (optional)
Cleaning type	Dry / Water
Brush material	PBT
Brush speed (idling)	368 RPM
Working mode	DC motor controls robot drive and brush rotation
Travel speed	20 m/min
Working angle	≤ 20°
Maximum span (gap crossing)	≤ 20 cm
Operating voltage	24 V
Power supply	Lithium battery (22.2–24 V) × 2
Runtime	6–8 hours
Water consumption	Max 1.84 L/min
Operating temperature	−20 °C to 50 °C
External dimensions	79 × 74 × 49 cm
Equipment weight	48.3 kg (including battery)

Right fit?

Best For

Utility-scale ground farms, large commercial rooftops, and high or hard-to-reach arrays where manual cleaning is unsafe or slow. Need a lighter single-brush version? See the R1A. For small or scattered rooftops, see the G2 / G3 electric brushes.
