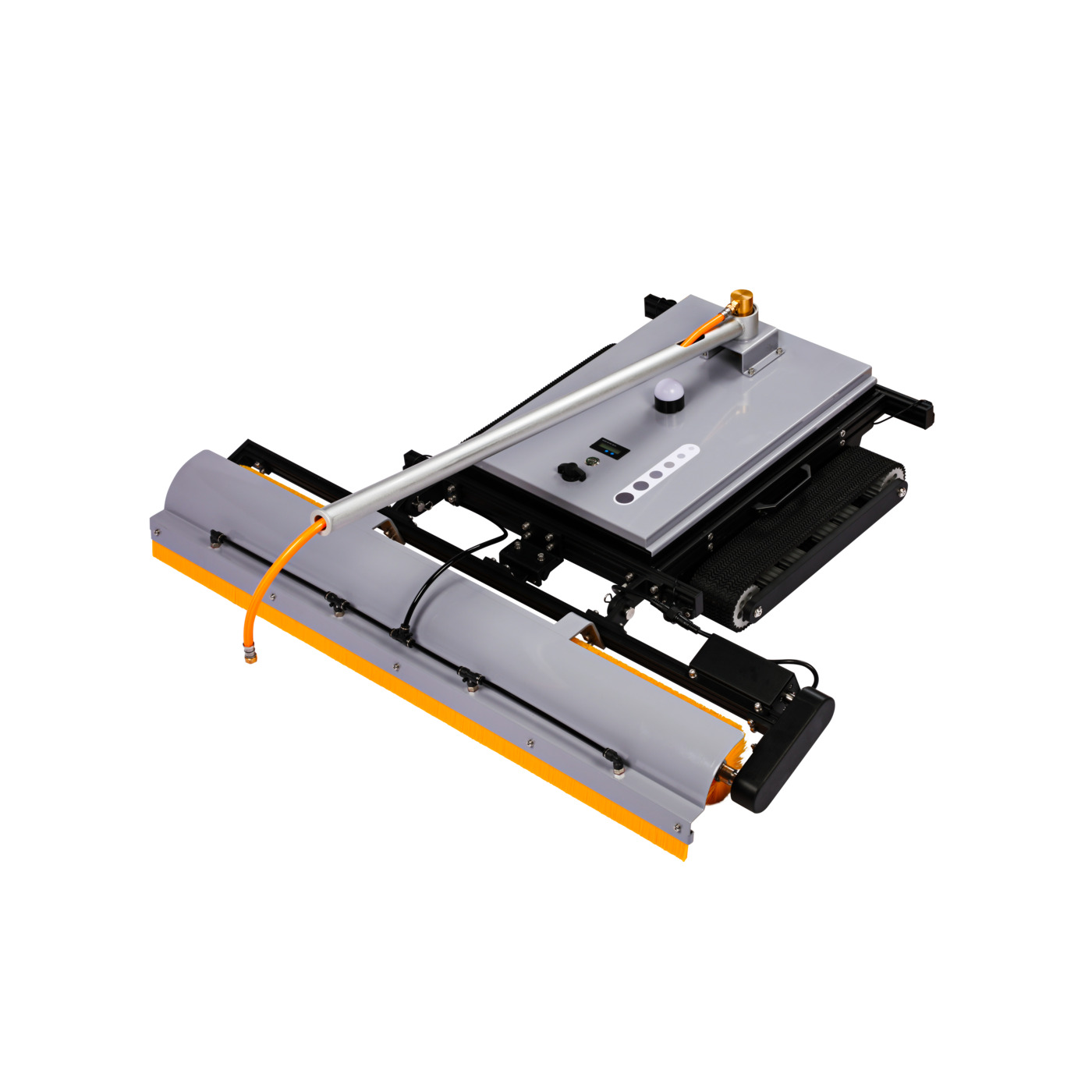

WSE-R01A single-head solar panel cleaning robot on a panel

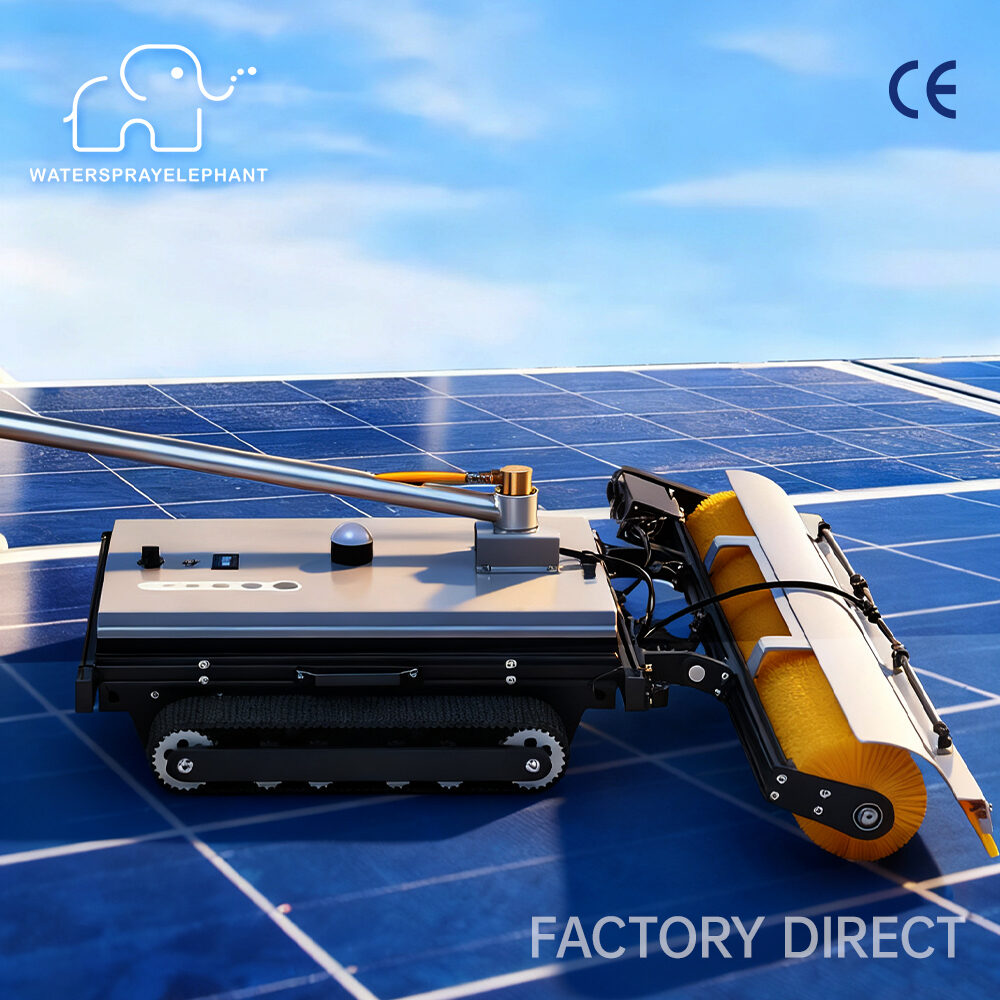

WSE-R01A single-head cleaning robot with roller brush

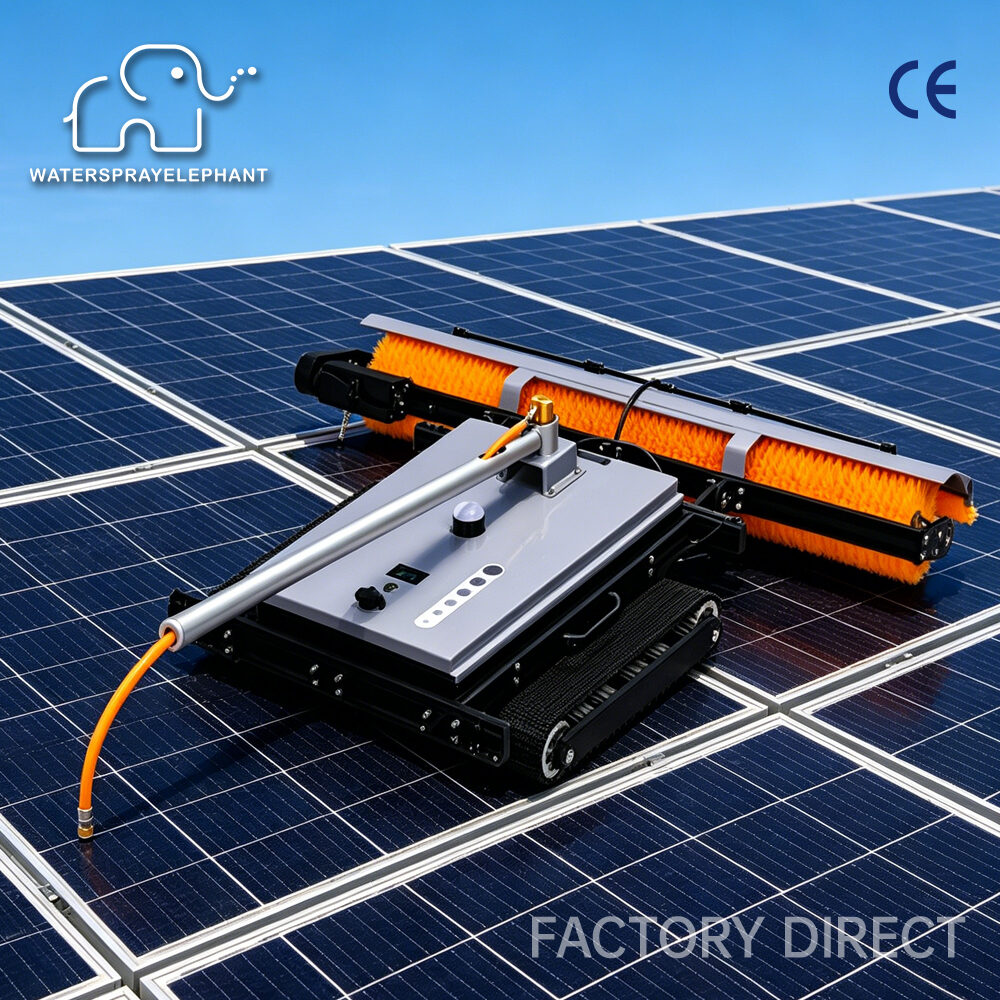

WSE-R01A cleaning robot working on solar panels

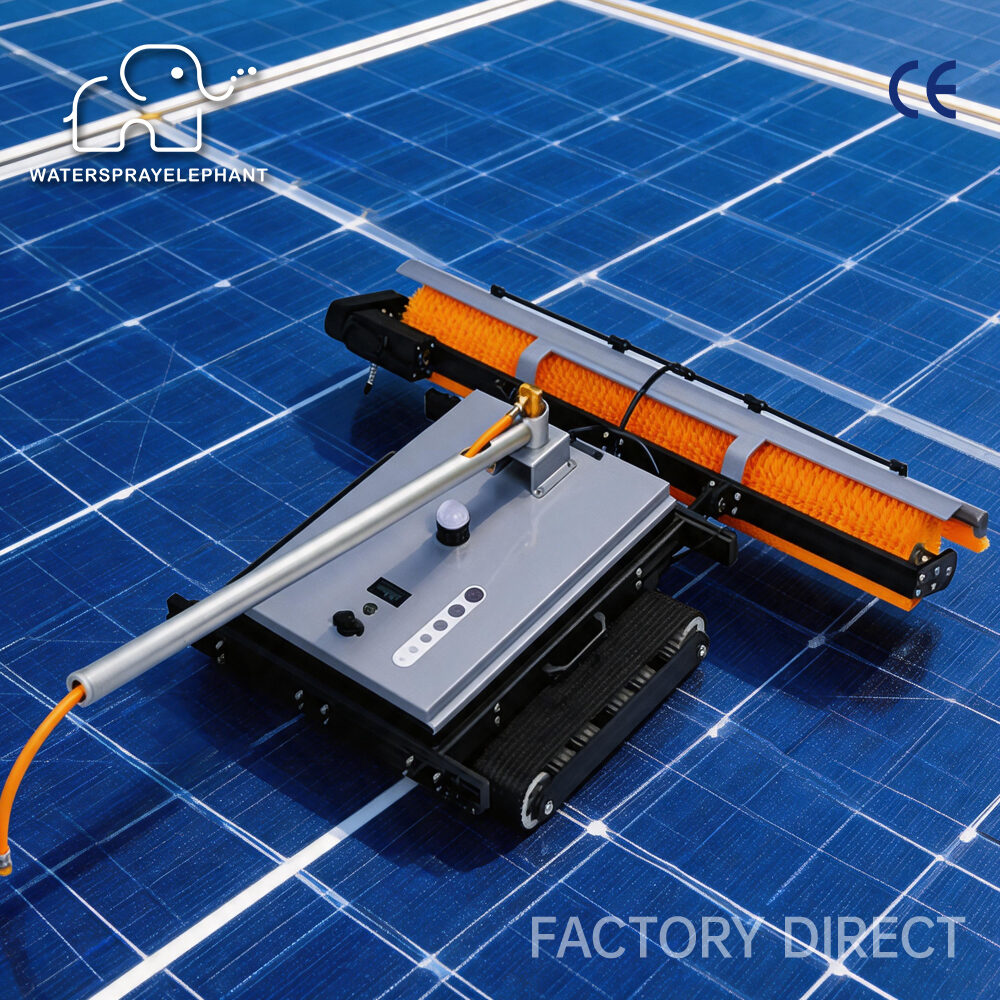

WSE-R01A cleaning robot on a solar array

R1A Single-Head Solar Panel Cleaning Robot

ModelWSE-R01A

Price on request

Highlights

Single roller brush on the same all-terrain tracked platform as the R01B
Wet and dry cleaning, max 1.84 L/min water consumption
150-200 m HD visual remote with stepless speed control
Anti-fall edge sensors stop it at panel borders automatically
6-8 hour runtime on dual 24 V / 26 Ah lithium packs

Request a Quote

Remote-controlled single-head crawler robot — the lighter entry to robotic cleaning.

SKU: WSE-R01A

Category: Solar Cleaning Robots

Overview

Remote-controlled, single-head crawler robot — the lighter entry to robotic cleaning.

The R1A shares the same all-terrain tracked platform, anti-fall system and 150–200 m HD visual remote as our double-head flagship, with a single roller brush up front.

Why this machine

Key Benefits

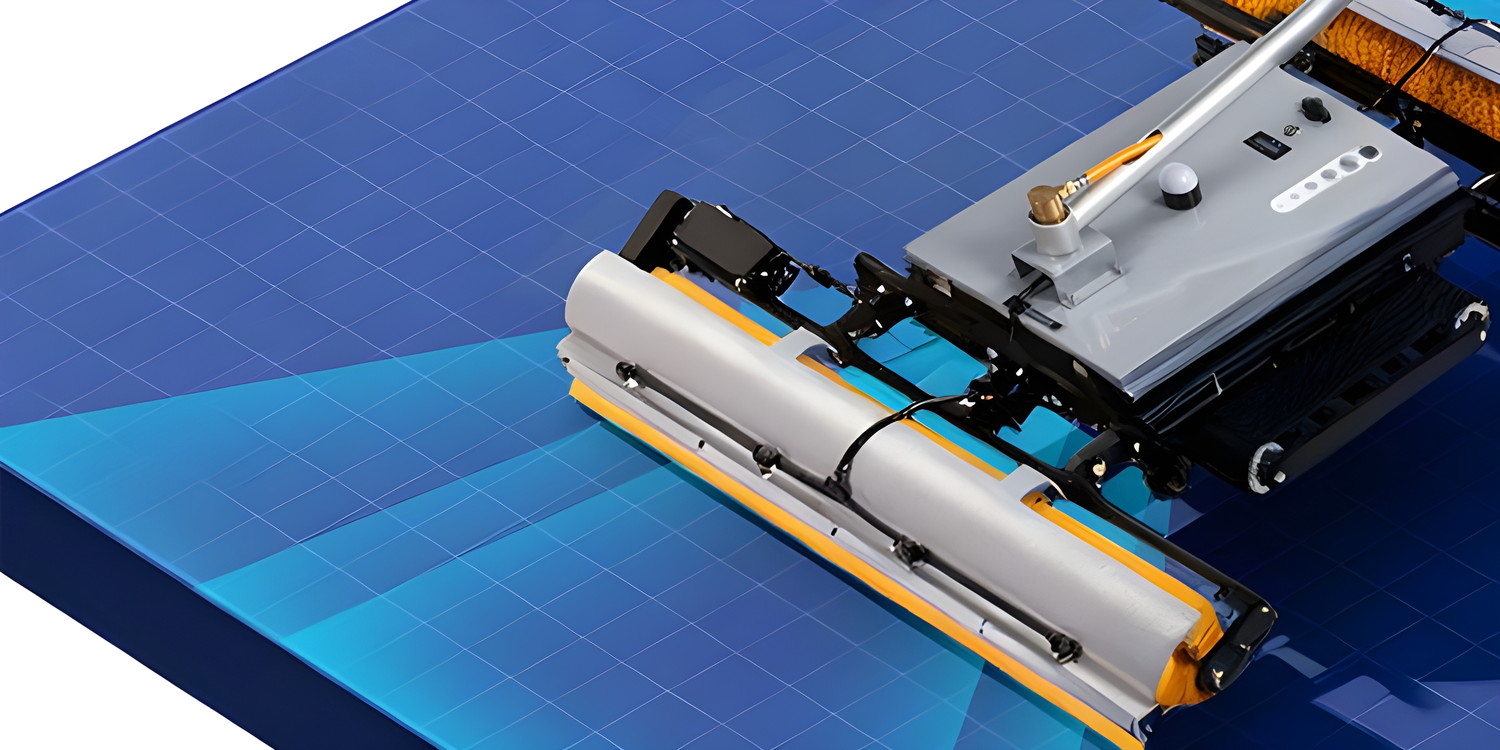

All-direction cleaning

drives forward, backward and sideways across the array, so a row is finished in one pass instead of being re-approached from a second angle. It moves between passes at 20 m/min, and the single roller comes in 1110 mm or 1400 mm so you match the head to your module layout rather than the other way round.

1110 / 1400 mm width368 RPM brush20 m/min travel

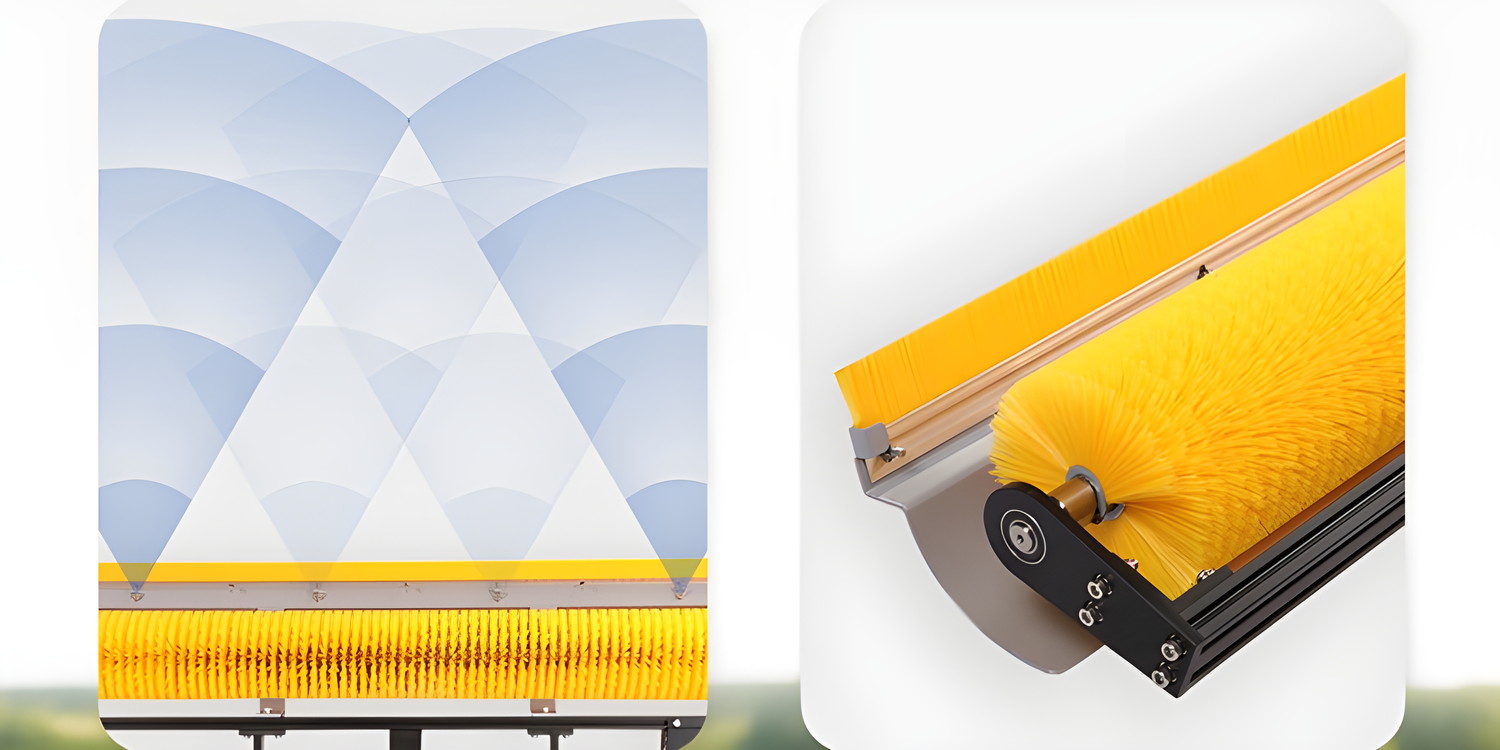

Wet & dry cleaning

nozzles above the roller lay water onto the glass while the PBT brush lifts dust, dried mud and bird droppings, drawing no more than 1.84 L/min. Switch the water off and the same roller sweeps loose dust and sand dry — which is what most desert and water-scarce sites actually need. No detergent either: the bristles are specified to clean the glass, not abrade it.

Wet + dryMax 1.84 L/minPBT bristles

HD visual remote (150–200 m)

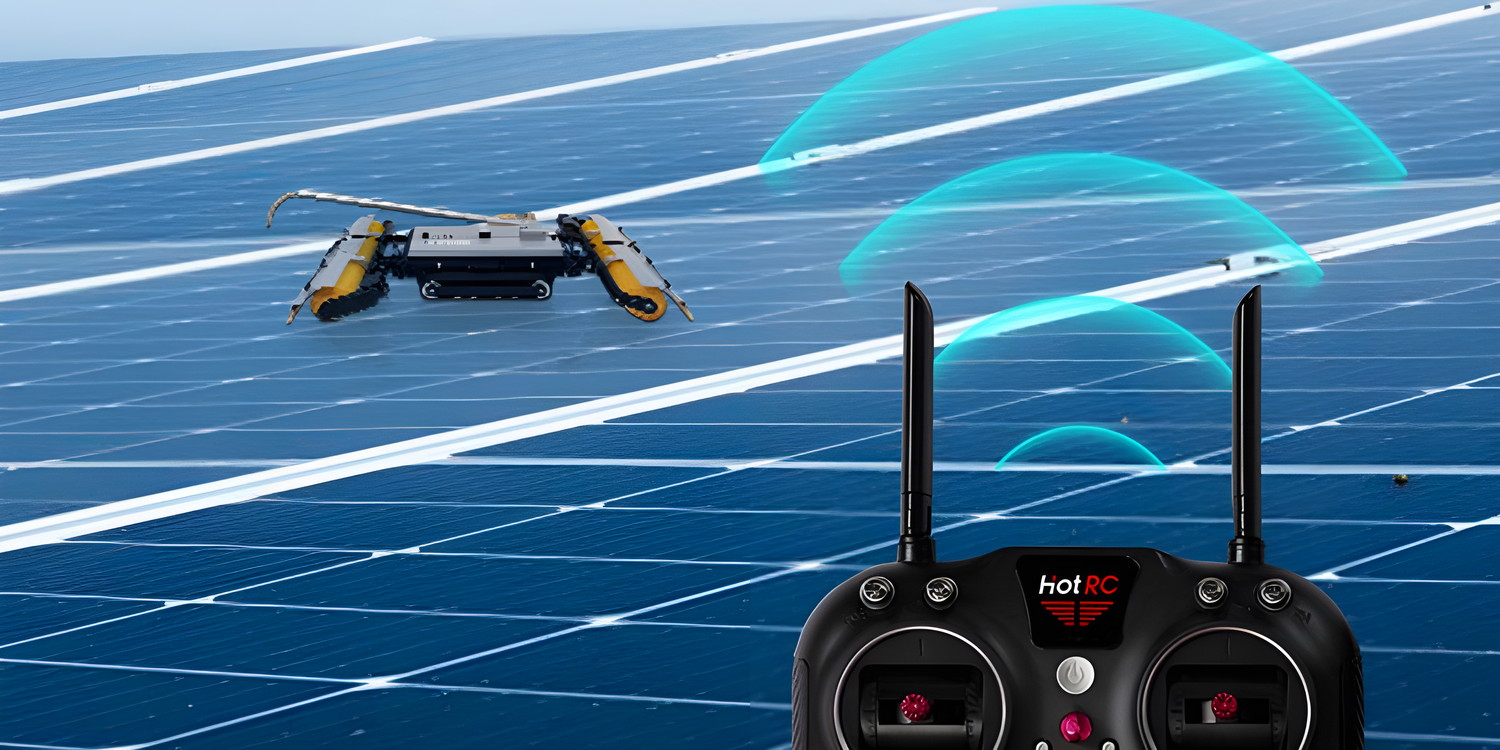

the operator stays on the ground or at the roof edge instead of walking the array, which is where most cleaning injuries happen. The handset shows signal strength and live battery state, warns on low voltage, and offers cruise control plus stepless speed adjustment, so you can slow down over a heavily soiled section without stopping the run.

150–200 m rangeStepless speedCruise control

All-day battery

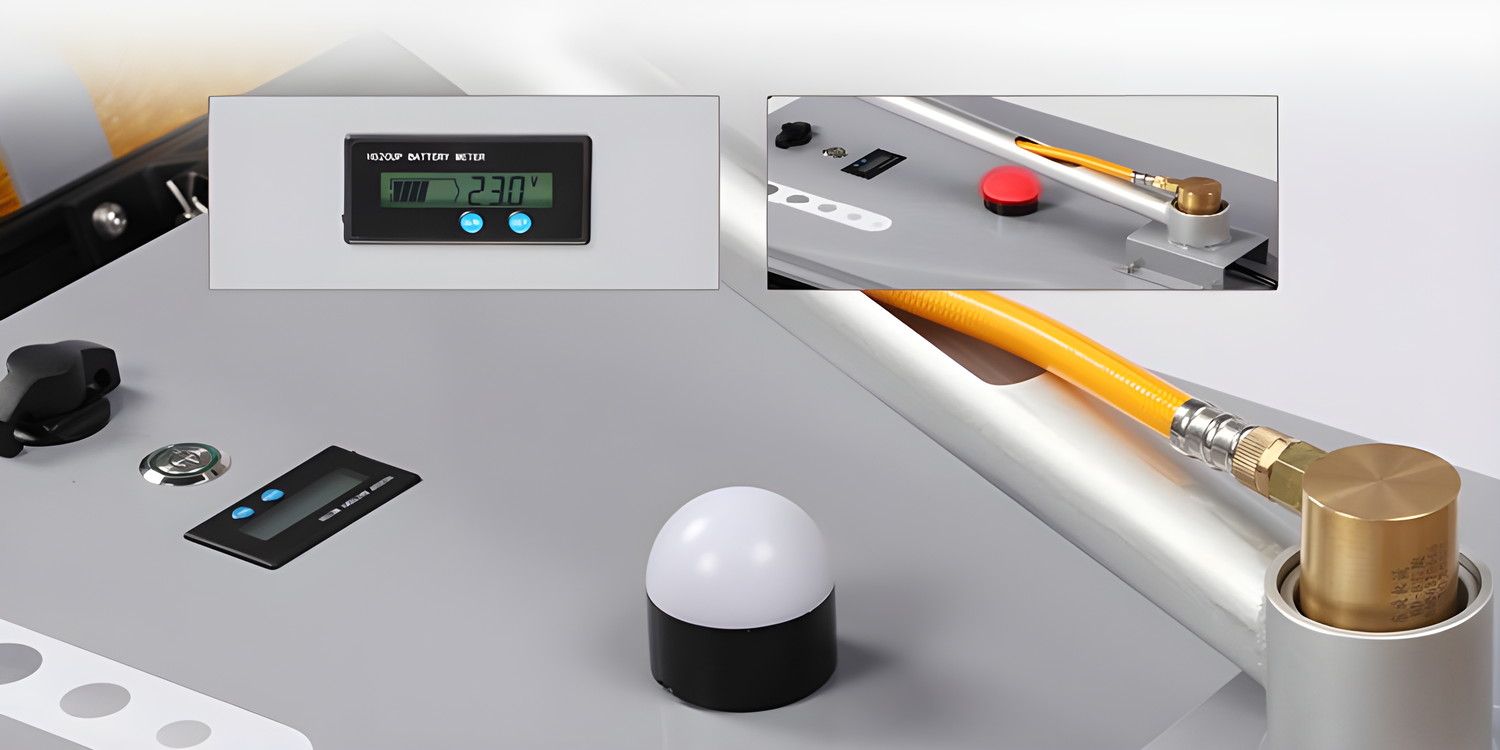

two 24 V / 26 Ah lithium packs give 6–8 hours of continuous cleaning, with the charge level readable straight off the housing rather than guessed at. Below 20% the robot warns with a flashing light and buzzer, so it tells you to bring it in rather than stranding itself mid-array.

24 V lithium ×26–8 h runtime

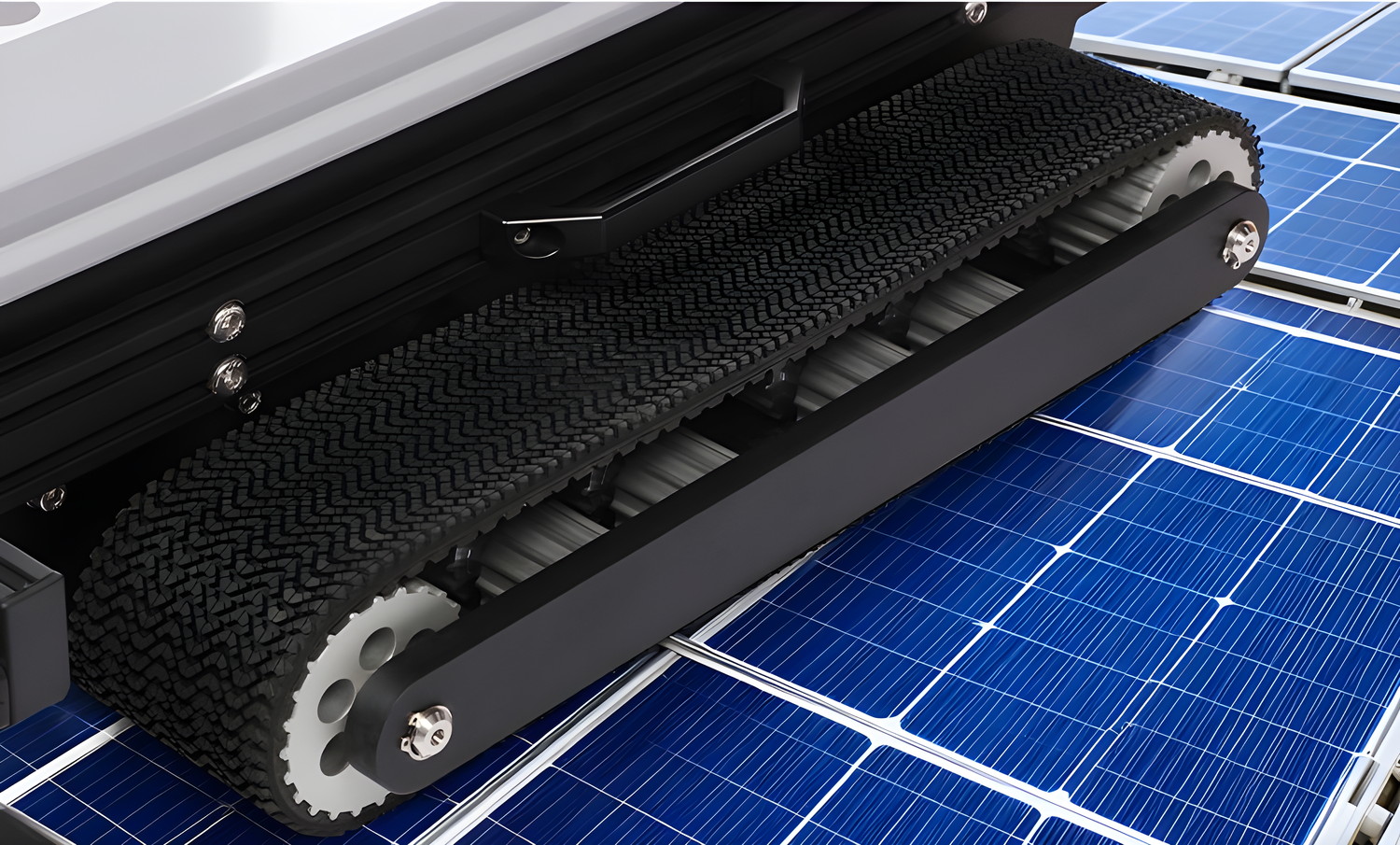

All-terrain tracked chassis

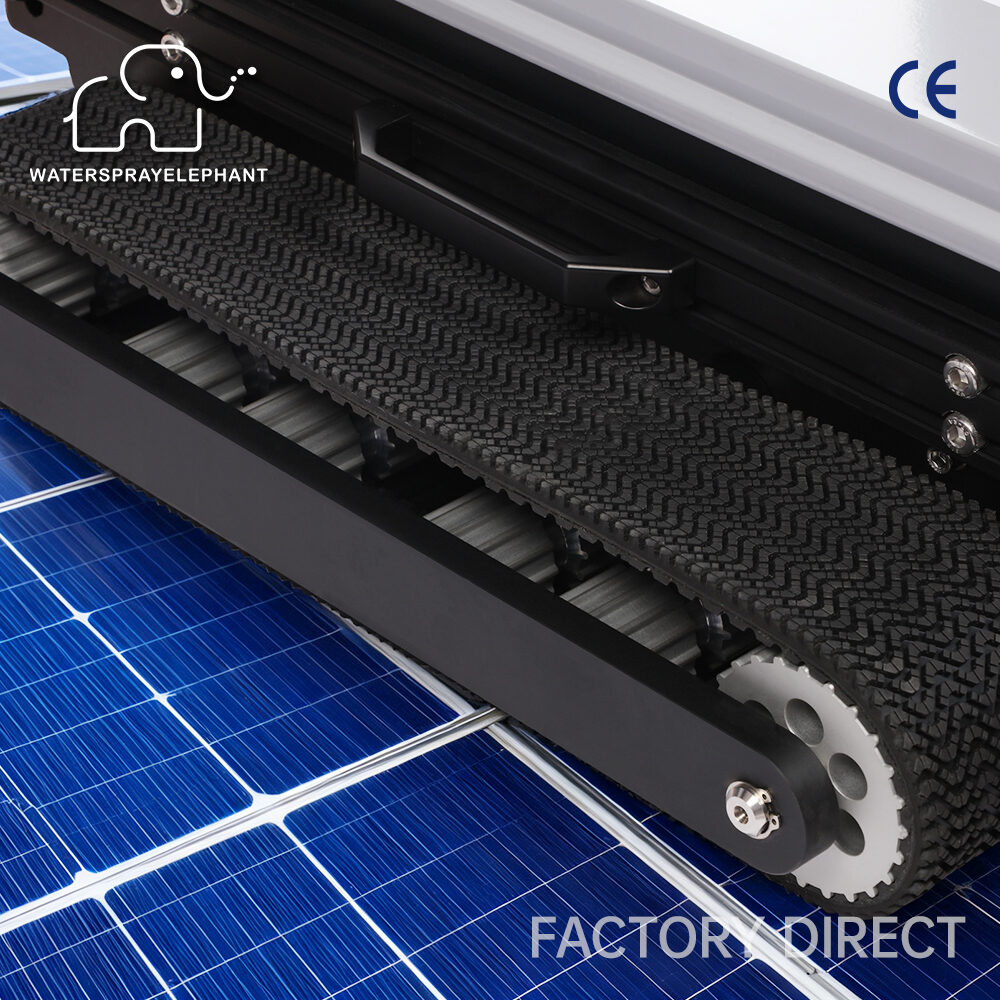

full-width rubber tracks spread the robot’s weight across the glass instead of concentrating it under wheels, so it grips wet and tilted panels without slipping or point-loading them. It steps across frame gaps of up to 20 cm and holds its line on arrays pitched up to 20°, in ambient temperatures from −20 to 50 °C.

48.3 kg20 cm gap crossing≤ 20° tilt

Safety first

Built not to fall

Anti-fall protection

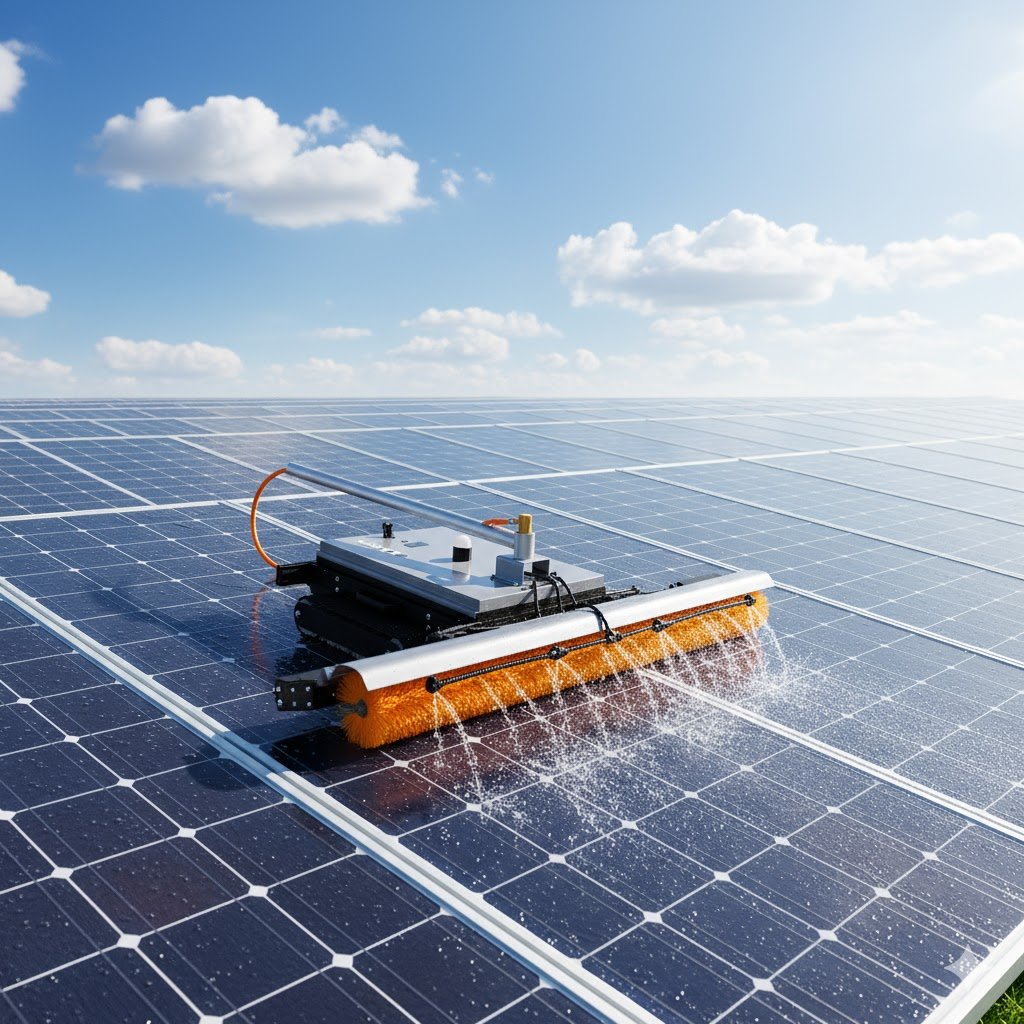

omni-directional edge sensors stop the robot at panel edges and turn on a red warning light; you simply drive it back the other way with the remote. Because the sensors read every direction rather than just ahead, they also catch row ends and mid-array gaps — which is where an unattended crawler is most likely to be lost.

Hover the photo — the rest of what this robot handles

360° all-round work
Up to 20° working angle
All-aluminium alloy body
Wide range of arrays

Technical data

Specifications

Item	Spec
Model	R1A (single head)
Cleaning width	1110 mm / 1400 mm (optional)
Cleaning type	Dry / Water
Brush material	PBT
Brush speed (idling)	368 RPM
Working mode	DC motor controls robot drive and brush rotation
Travel speed	20 m/min
Working angle	≤ 20°
Maximum span (gap crossing)	≤ 20 cm
Operating voltage	24 V
Power supply	Lithium battery (22.2–24 V) × 2
Runtime	6–8 hours
Water consumption	Max 1.84 L/min
Operating temperature	−20 °C to 50 °C
External dimensions	79 × 74 × 49 cm
Equipment weight	48.3 kg (including battery)

Right fit?

Best For

Mid-size plants and rooftops taking their first step into robotic cleaning. For maximum daily coverage, the R1B double-head boosts efficiency by ~95% versus a single brush.
